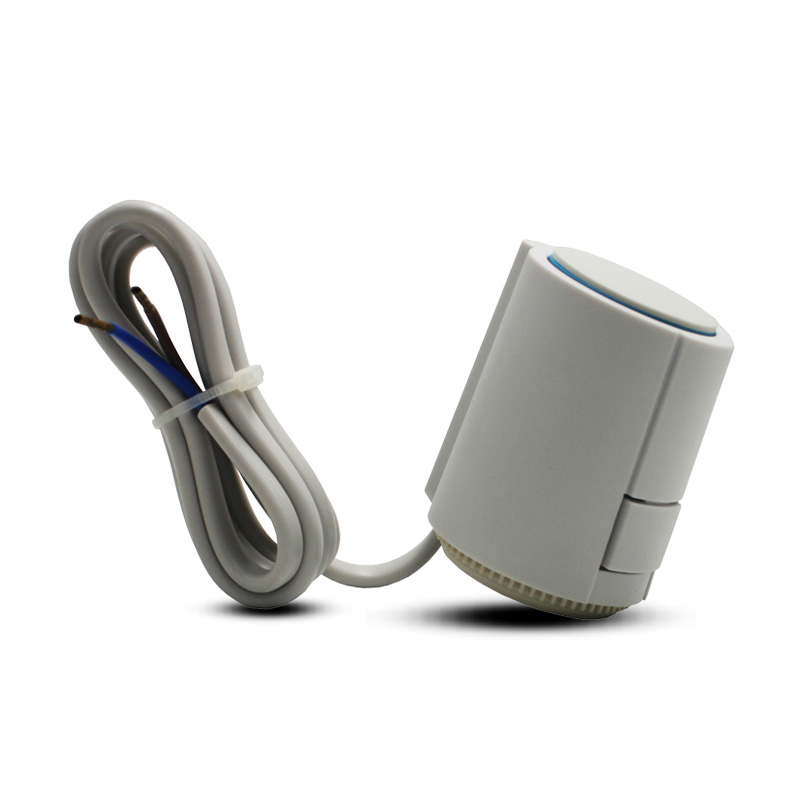

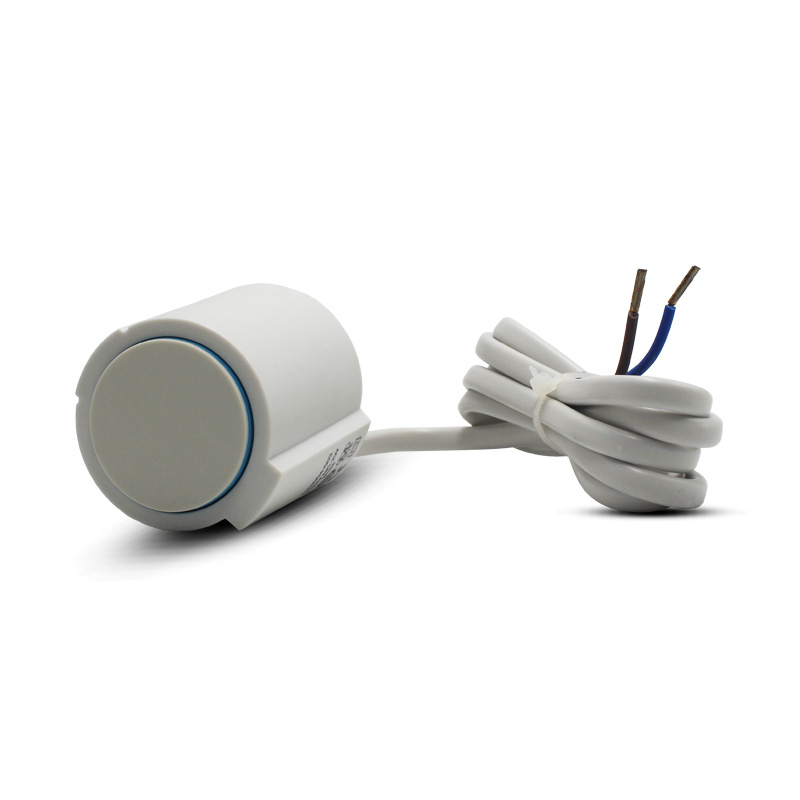

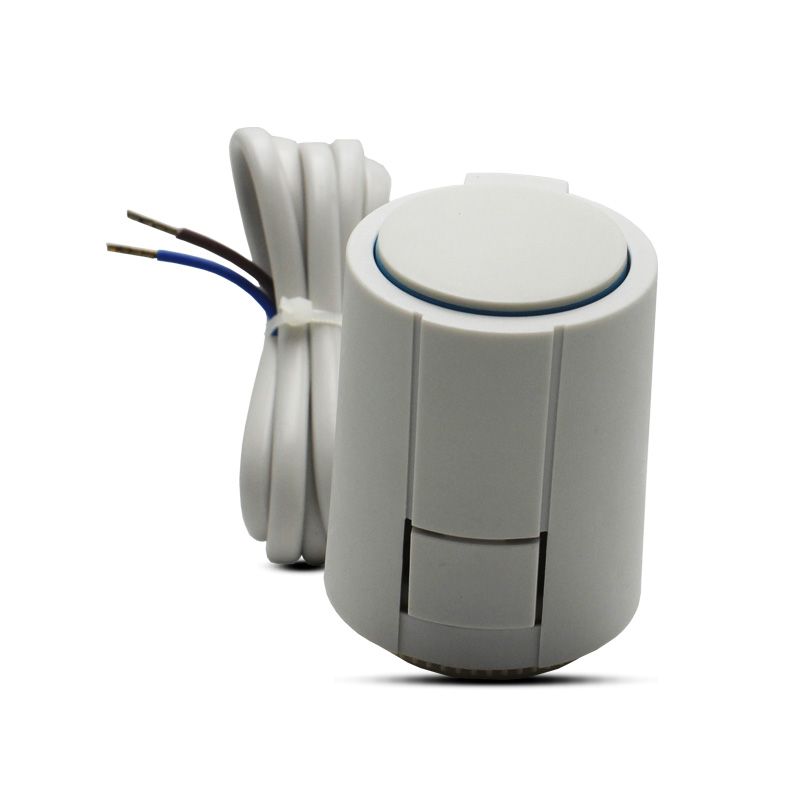

The Beris Thermal Actuator is designed for hydronic underfloor heating systems, providing automatic control of hot water flow through individual heating zones. Installed directly on the manifold, this Underfloor Heating Actuator opens and closes the valve according to thermostat demand, helping maintain precise room temperature and improve energy efficiency.
Featuring a standard M30x1.5 connection, the Thermoelectric Actuator is compatible with most underfloor heating manifolds, wiring centres, and zone control systems. Available in 230VAC and 24VAC versions, it is an ideal solution for residential and commercial radiant floor heating applications.
Reliable, maintenance-free, and easy to install, the Beris Thermal Actuator ensures efficient and comfortable heating control for modern Underfloor Heating Systems.

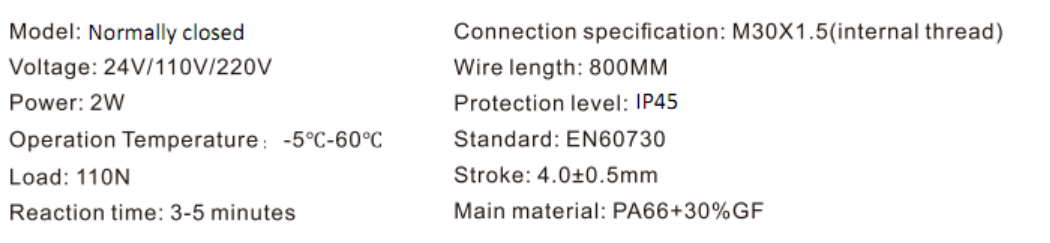

>> Technical Parameter
>> Key Features
1. Precise Zone Control
Automatically opens and closes manifold valves based on thermostat demand, enabling accurate room-by-room temperature control.

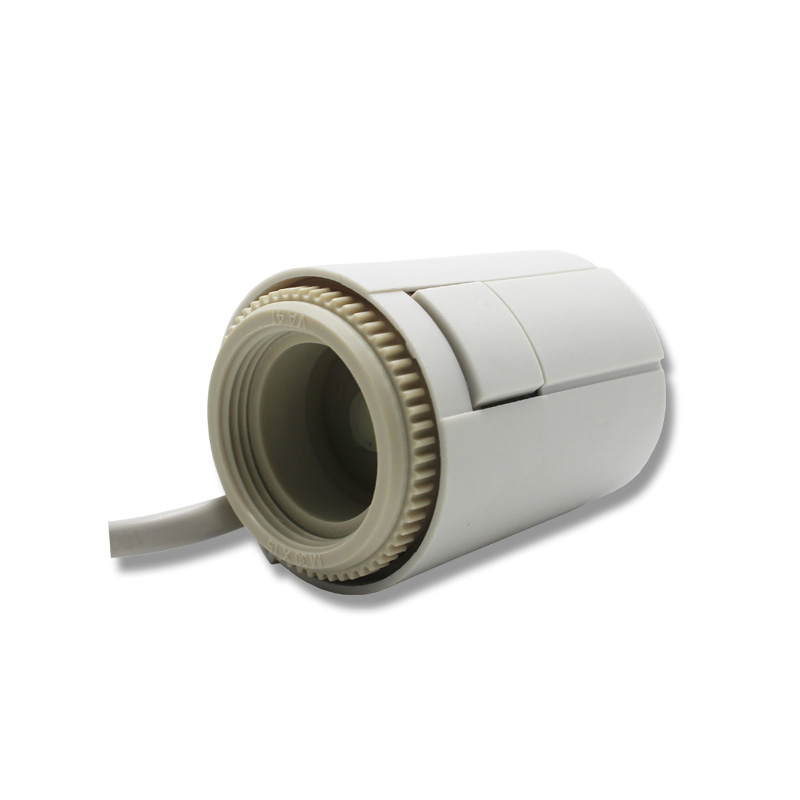

2. Standard M30×1.5 Connection
Compatible with most underfloor heating manifolds and valve bodies for easy replacement and installation.
3. Available in 230VAC & 24VAC
Suitable for a wide range of residential and commercial underfloor heating control systems.
4. Normally Closed (NC) Design
Failsafe operation with low energy consumption, ensuring reliable heating control and system protection.
5. Quiet & Maintenance-Free Operation
Thermoelectric technology provides silent operation without gears or motors, requiring virtually no maintenance.
6. Energy Saving Solution
Works with thermostats and wiring centres to regulate hot water flow only when needed, helping reduce energy consumption.
7. Fast & Easy Installation
Simple screw-on mounting design allows quick installation on compatible manifold valves.
8. Wide System Compatibility
Compatible with most underfloor heating thermostats, wiring centres, and zoning control systems on the market.
