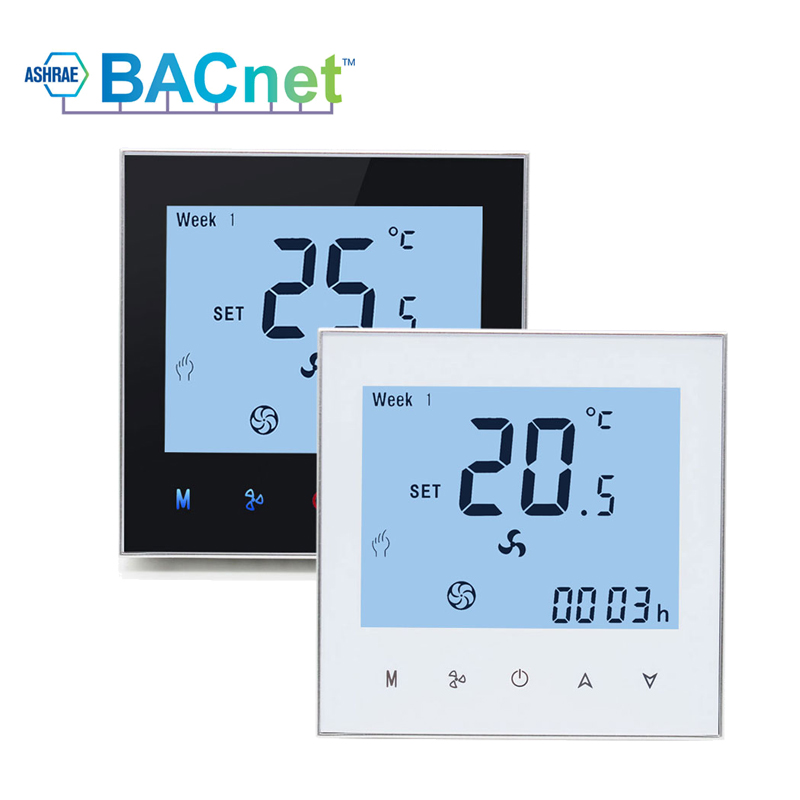

BACnet Thermostat For Building Air Conditioning

BT03-BAC-FCU Series BACnet Thermostat is a smart thermostat designed to be incorporated into fan coil unit heating

and cooling systems for room environment control.

 It has different configurations of 2-pipe, 4-pipe, external sensor, and keycard, welcome to inquiry for details.

 2-pipe: Control Fan Coil Unit and Two Wired Motorized Valve

4-pipe: Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve.

>> Product Video

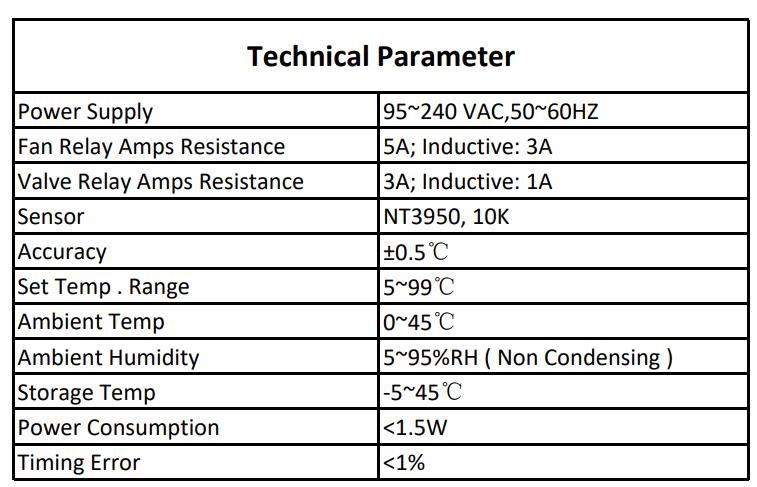

>> Product Parameters

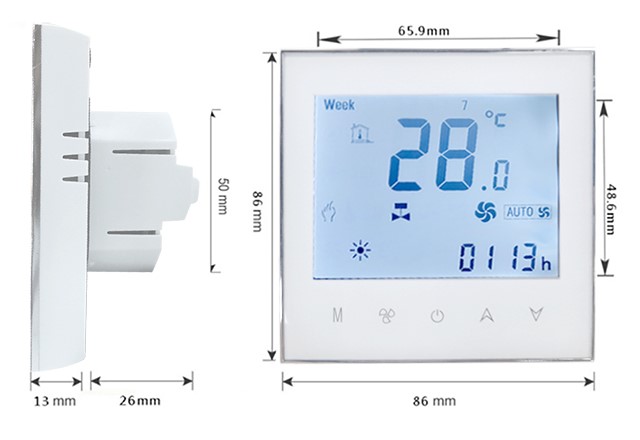

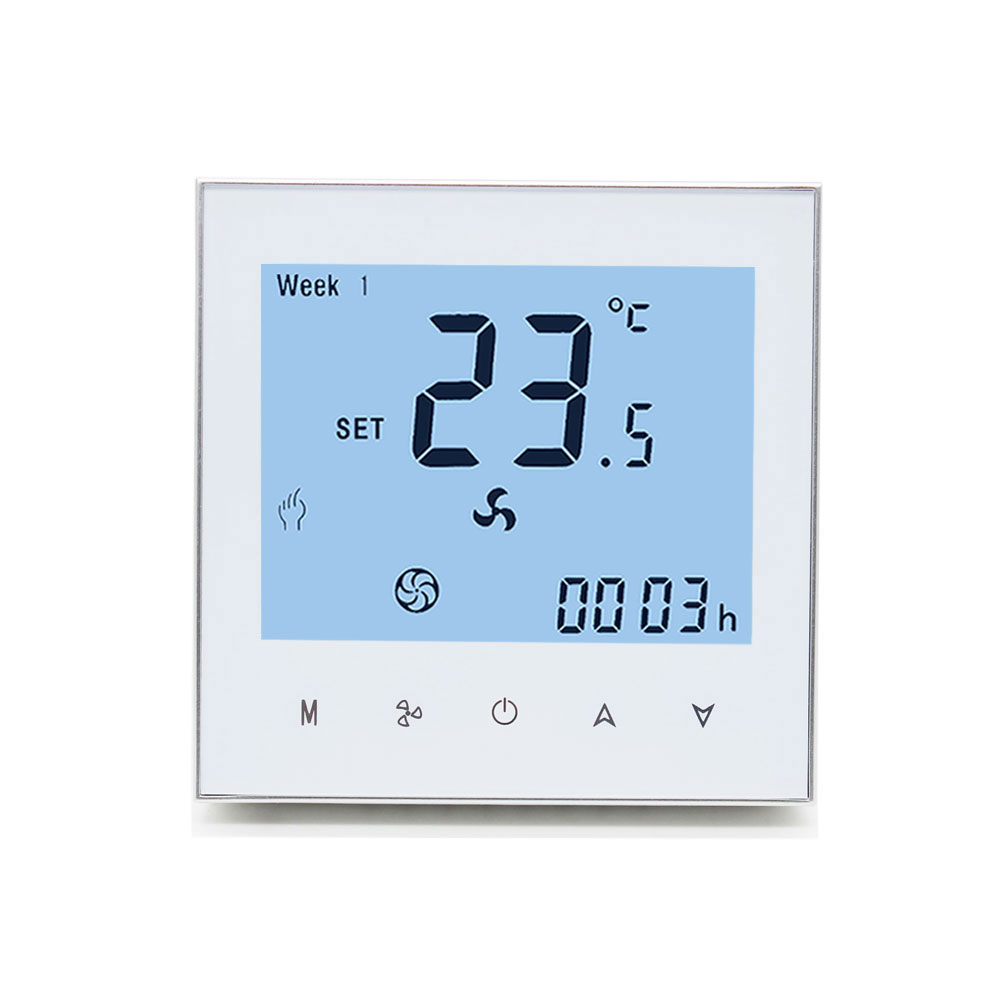

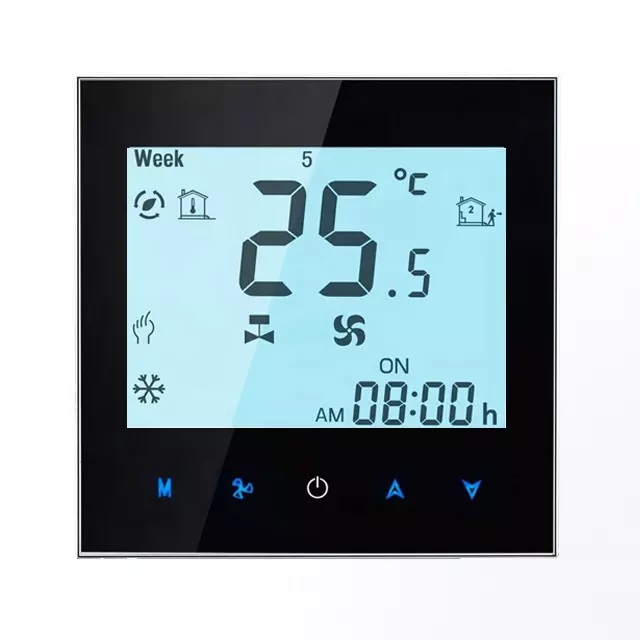

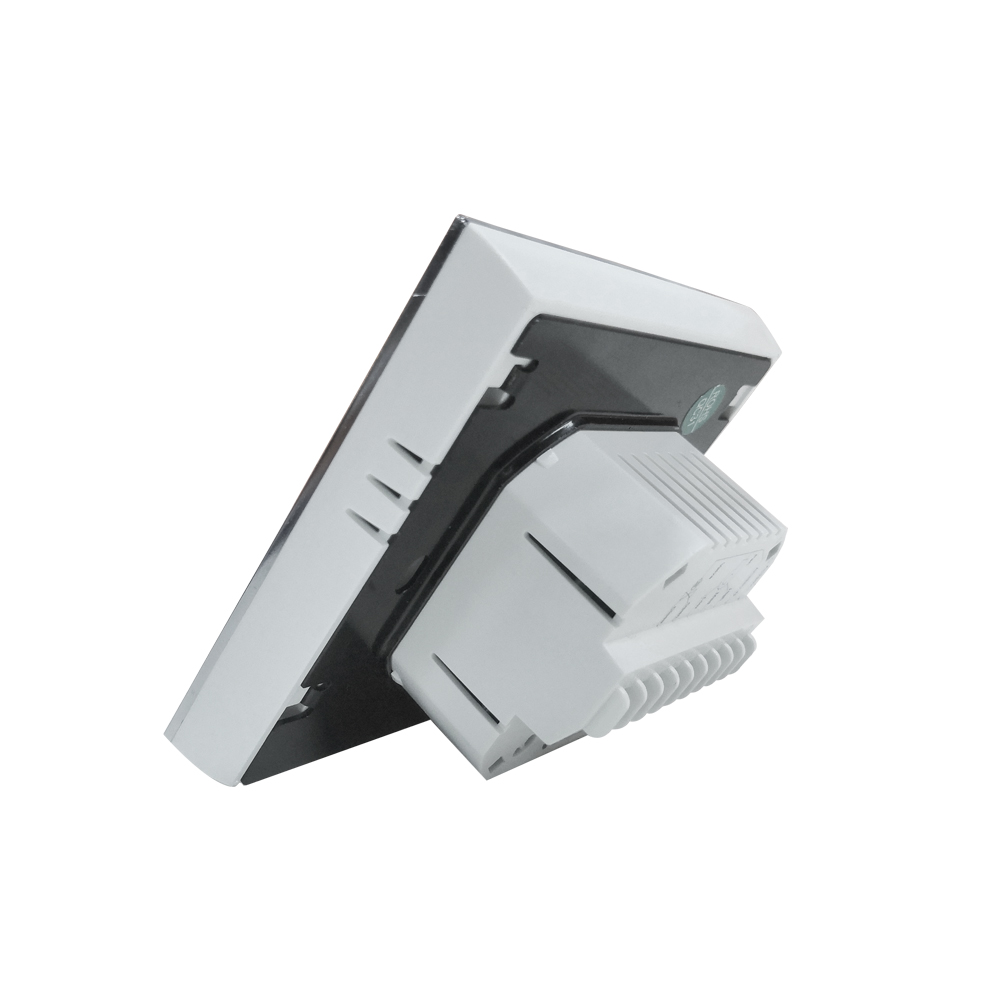

>> Detailed Images

>> Wiring Diagram

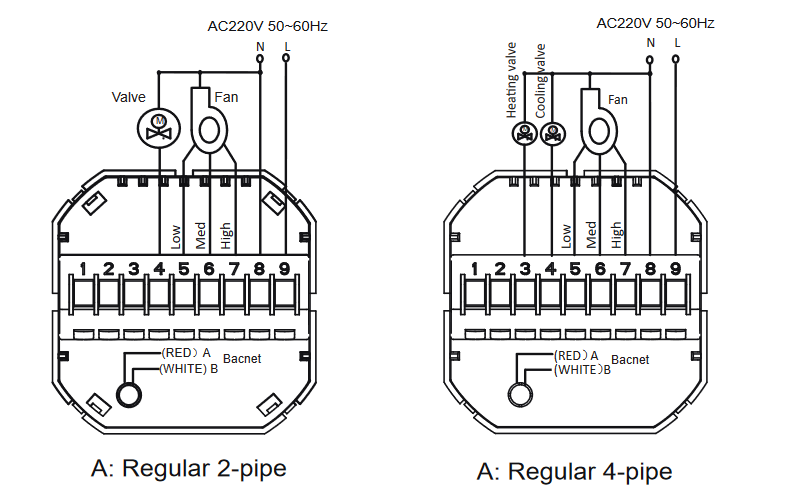

A: Regular 2 pipe or 4 pipe

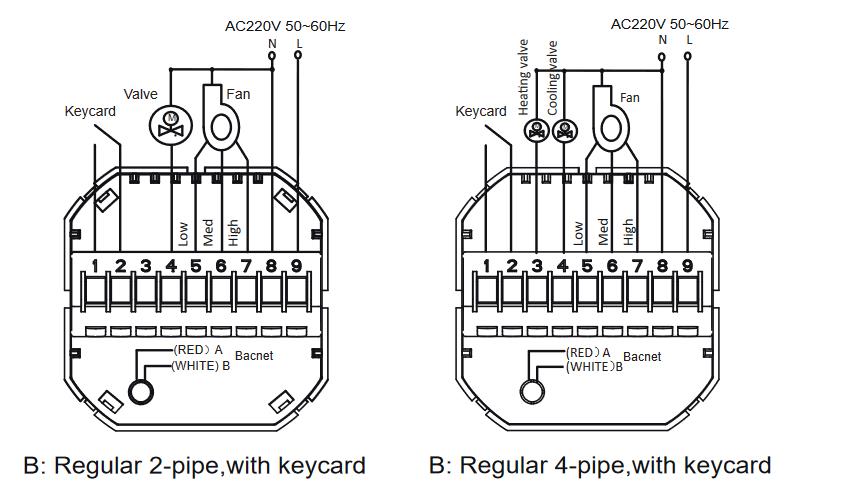

B: Regular 2 pipe or 4 pipe with Keycard

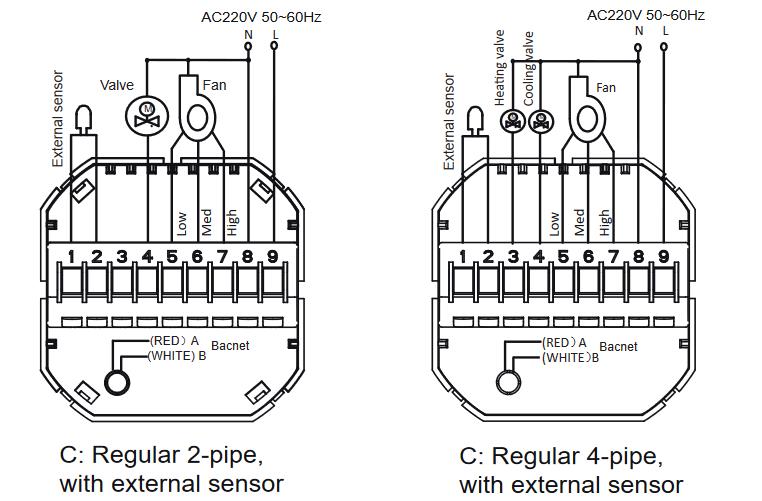

C: Regular 2 pipe or 4 pipe with external sensor
