BACnet Thermostat Application in OCEAN Building, Middle East

    Project Overview

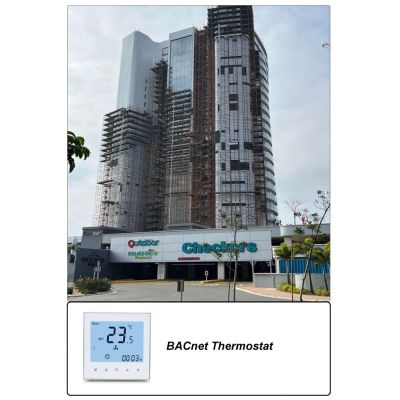

The OCEAN Building is a modern commercial high-rise located in the Middle East, developed with a strong focus on centralized building management, energy efficiency, and long-term operational reliability.

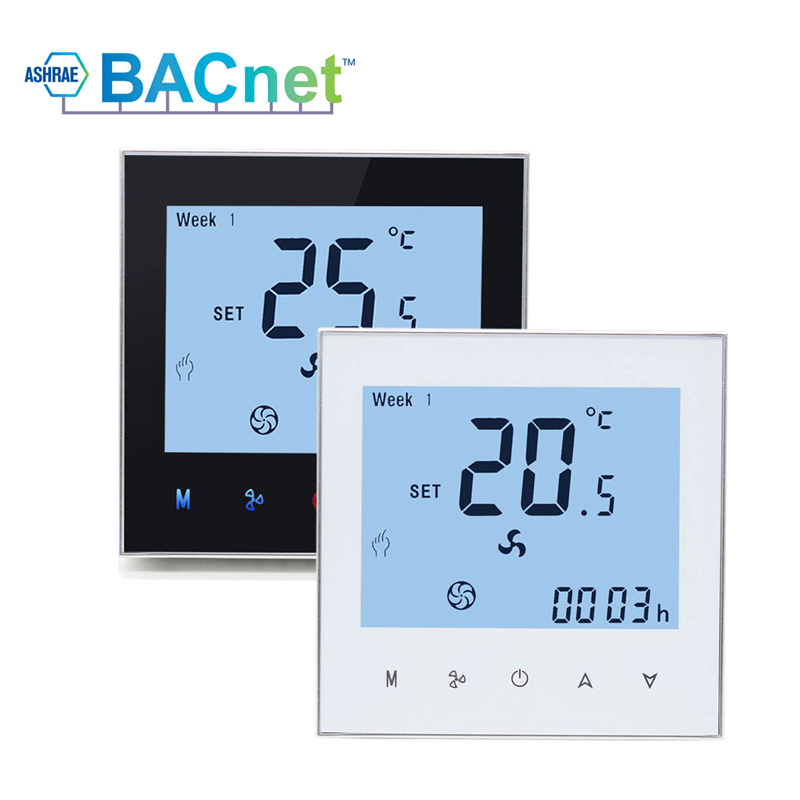

For this project, the BT03-BAC-FCU BACnet thermostat was selected as the room-level HVAC control device, fully integrated into the building’s existing Building Management System (BMS).

The solution enables precise temperature control while allowing centralized monitoring and management through BACnet communication.

    Project Background

Large-scale commercial buildings in the Middle East typically rely on centralized HVAC systems supervised by a BMS.

For the OCEAN Building, the project team required a thermostat solution that could:

•   ● Communicate directly with the existing BACnet-based BMS
•   ● Provide stable and reliable field-level control
•   ● Support centralized monitoring and control
•   ● Operate reliably in a demanding commercial environment

Conventional standalone thermostats were not suitable. A native BACnet thermostat with FCU control capability was required to meet both technical and operational expectations.

    Solution Overview

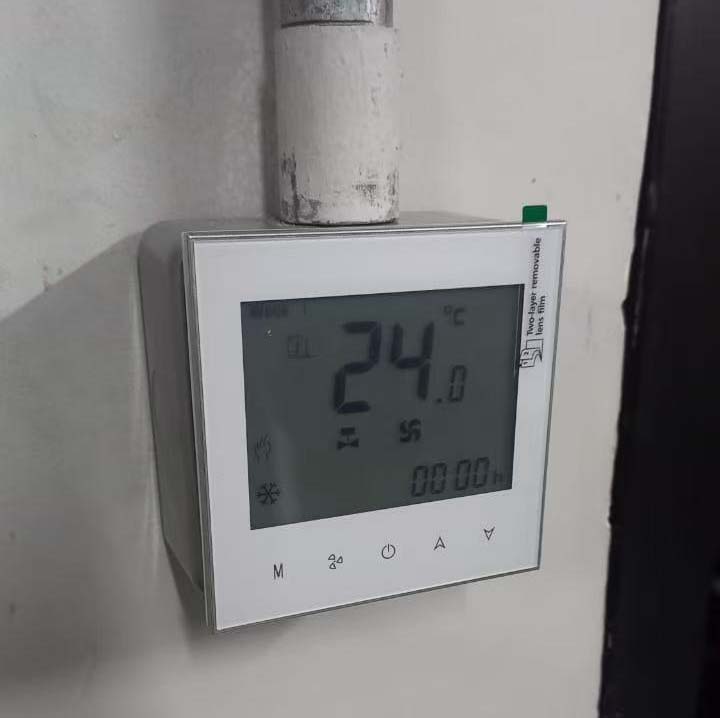

The BT03-BAC-FCU thermostat was deployed across the building as the room-level HVAC controller for fan coil units (FCU).

Each thermostat communicates directly with the BMS via BACnet, acting as a field device that executes local control while reporting real-time data to the central system.

All scheduling, supervision, and system-level logic are managed centrally through the BMS.

    BT03-BAC-FCU Configuration

The BT03-BAC-FCU thermostat supports the following key functions for commercial HVAC applications:

•   ● Heating and cooling control
•   ● Fan coil unit (FCU) control
•   ● 3-speed fan control
•   ● Native BACnet communication protocol
•   ● Real-time room temperature and status feedback to BMS

The configuration was tailored to match the HVAC design and BMS architecture of the OCEAN Building, ensuring seamless integration and long-term stability.

    BMS Integration

Through BACnet communication, the BT03-BAC-FCU thermostats are fully integrated into the building’s BMS:

•   ● Room temperature and setpoints are monitored in real time
•   ● Operating modes and fan status are visible at the BMS level
•   ● Centralized scheduling and adjustments are handled via BMS
•   ● Fault detection and system diagnostics are simplified

This architecture significantly reduces on-site manual intervention and improves overall system manageability.

    Project Results

Following commissioning, the BACnet thermostat solution delivered clear and measurable benefits:

•   ● Seamless integration with the existing BACnet BMS
•   ● Stable and reliable operation in a high-rise commercial building
•   ● Improved HVAC operational efficiency
•   ● Centralized control reduced daily operational workload
•   ● Enhanced comfort management across multiple zones

The system has been operating reliably and meets the long-term performance requirements of the building owner and facility management team.

    Why BT03-BAC-FCU Was Selected?

The BT03-BAC-FCU was chosen for this project due to its suitability for commercial BACnet applications:

•   ● Native BACnet protocol for direct BMS integration
•   ● Designed specifically for FCU control
•   ● High compatibility with third-party building automation systems
•   ● Scalable and maintainable for future system expansion

Its combination of local control capability and centralized visibility makes it an ideal solution for modern commercial buildings.

    Application Scenarios

The BT03-BAC-FCU BACnet thermostat is suitable for:

•   ● Commercial office buildings
•   ● Shopping malls
•   ● Hotels and mixed-use developments
•   ● Large residential or commercial buildings with centralized HVAC systems

    Conclusion

The OCEAN Building project demonstrates the successful application of the BT03-BAC-FCU BACnet thermostat in a modern commercial building in the Middle East.

By combining room-level FCU control with centralized building management, the project achieved reliable operation, improved efficiency, and simplified HVAC system management.

This case serves as a strong reference for future BACnet-based commercial HVAC projects.
