How to Determine Whether Your VRF System Supports a Third-Party Thermostat？

Selecting a thermostat for a VRF (Variable Refrigerant Flow) air-conditioning system is very different from choosing one for a standard fan coil unit (FCU). VRF indoor units rely on digital communication, and different manufacturers use different communication rules.
As a result, one of the most common questions installers and building engineers ask is:

“Can my VRF system work with a third-party thermostat?”

There isn’t a single universal answer—but there is a practical way to determine compatibility.
This article provides a clear, engineer-friendly guide to identifying whether your VRF system can support an external thermostat. The information applies to major brands including Daikin, Midea, Gree, Haier, Hisense, York, Hitachi, Mitsubishi Heavy, Mitsubishi Electric, Kelon, and others.

    1. How Does a VRF Thermostat Actually Work?

A VRF thermostat does not directly control a fan motor or compressor the way an FCU thermostat does.
Instead, it sends digital commands to the indoor unit:

• Set temperature
• Operation mode
• Fan speed
• Status data

The indoor unit then communicates with the outdoor unit to regulate the refrigerant flow.
This digital architecture means:

    ▷ If the communication protocol does not match, the thermostat and indoor unit simply cannot talk to each other.

That is why compatibility is essential.

     2. Can VRF Systems Use Third-Party Thermostats?

Yes—if the indoor unit provides an open communication interface and the thermostat supports the corresponding protocol.

VRF systems are sophisticated, but compatibility can be determined by checking four key factors.

    3. The Four Most Important Factors in VRF Thermostat Compatibility

Below are the criteria that matter most in real engineering practice.

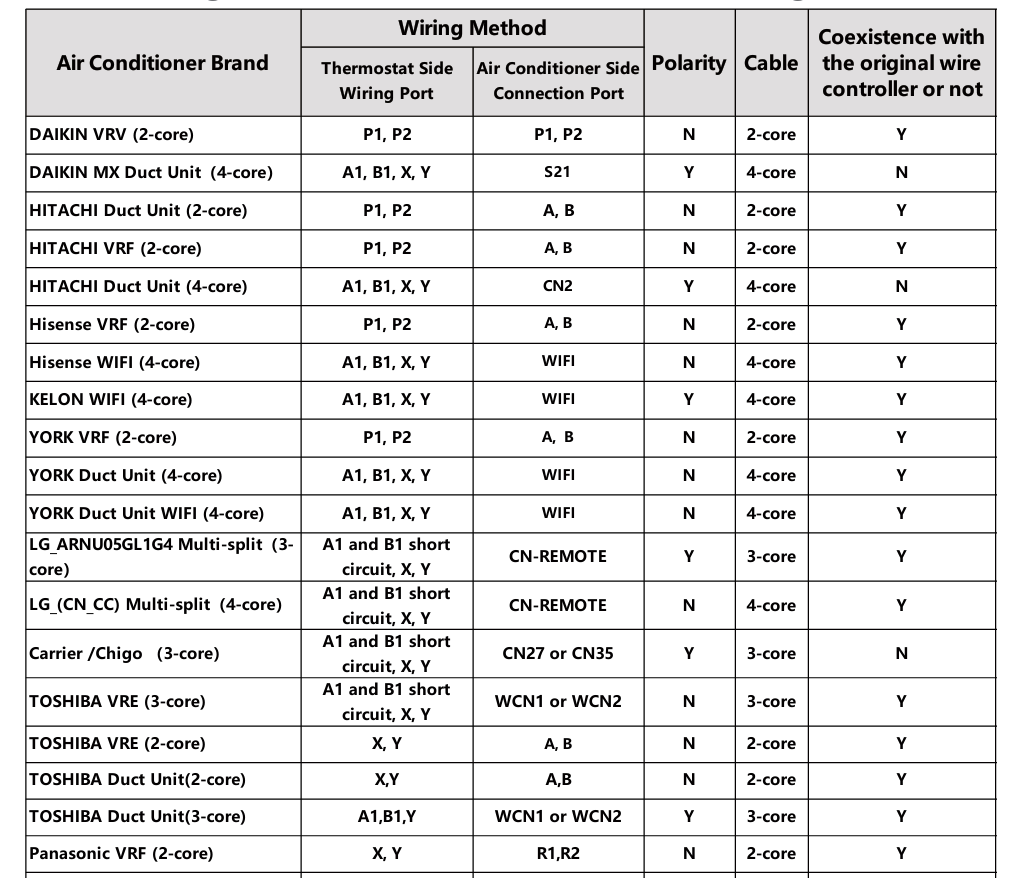

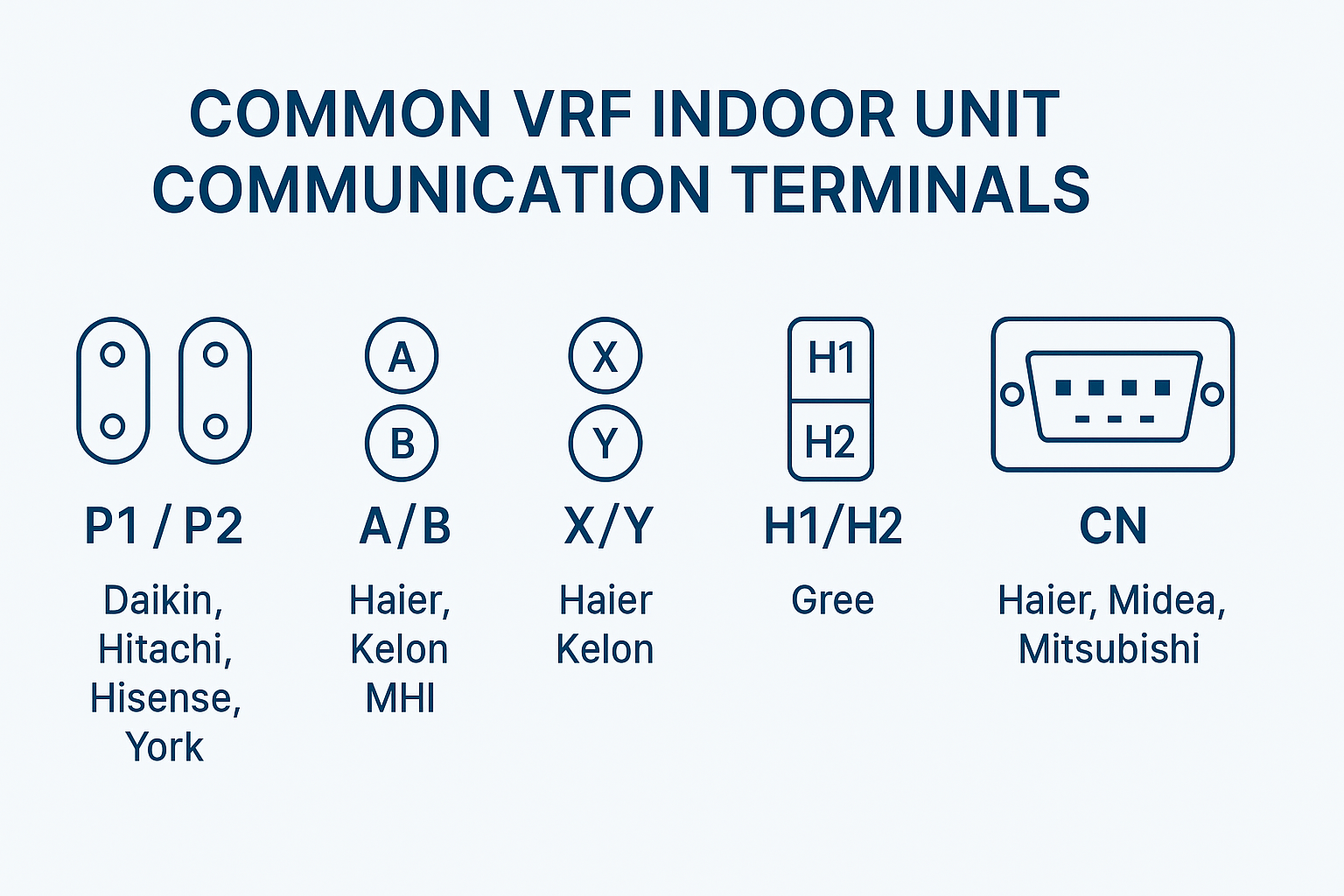

1) Communication Terminals on the Indoor Unit

This is the core of compatibility. Different brands use different ports, such as:

P1 / P2 (Most universal and compatible)

Common in:
Daikin, Hitachi, Hisense, York

Features:

• 2-core cable
• Usually non-polar
• Many models allow parallel control (original wired controller + third-party thermostat)

If your indoor unit uses P1/P2, compatibility is usually straightforward.

  ◆ A / B or X / Y Terminals

Found in:

Haier, Hitachi duct units, Mitsubishi Heavy, Kelon

These terminals function similarly to P1/P2 but may require polarity or different wiring logic.

  ◆ H1 / H2 (Used by Gree)

Found in:
Gree VRF, Gree XK111 units

These are polarity-sensitive and may require the CN6 interface on certain units.

   ◆ CN-type Connectors (Multi-pin Interfaces)

Examples: CN2, CN4, CN22, CN105, CN20, CN40
Used by:
Midea, Haier, Gree, Mitsubishi Electric, others

These ports usually offer the most stable integration with third-party thermostats.

   2) Cable Requirements

Different ports require different cable types:

• 2-core: P1/P2, A/B, X/Y, H1/H2
• 4-core: CN22, CN40, WiFi digital port
• 5-core: Midea CN20

The thermostat must follow the indoor unit’s wiring requirements.

    3) Whether the VRF Brand Allows Parallel Controllers

Some brands freely allow an external thermostat to coexist with the original wired controller, while others are more restrictive.

Brands that generally allow parallel control:

• Daikin
• Hisense
• York
• Hitachi VRF
• Midea (very open)
• Haier CN22 units
• Kelon

Brands with partial restrictions:

• Gree
• Mitsubishi Heavy

Brands with stricter rules:

• Mitsubishi Electric (CN105 varies by region/model)

    4) Whether the Thermostat Supports the Corresponding Protocol

The port determines how the device is connected;
the protocol determines whether they can communicate.

Examples:

• Daikin → P1/P2
• Midea → CN20 / CN40 / X1-X2
• Gree → H1 / H2
• Haier → X/Y/B1 or CN22

A third-party thermostat must speak the correct “language.”

    4. Compatibility Characteristics of Major VRF Brands

The following is summarized from real project experience around the world.

Daikin VRV

• Interface: P1/P2
• Reliable and widely documented
• Parallel control usually supported
• S21 ports on duct units require separate confirmation

Daikin is one of the most installer-friendly VRF brands.

Hitachi VRF / Duct Units

• VRF units use A/B terminals
• Duct units often use CN2 or A1/B1/X/Y
• Good compatibility when wiring is correct

Hisense VRF

• P1/P2 for VRF
• 4-core digital “WiFi ports” for duct units
• Stable and predictable behavior

York VRF

• P1/P2 or digital WiFi port
• Widely used in Middle Eastern hotels
• Works well with external controllers

Gree VRF

• Uses H1/H2, sometimes CN6
• Requires strict wiring discipline
• Behavior varies by model

Haier VRF

• X/Y/B1 terminals
• CN22 for duct units
• CN22 is generally very stable for third-party thermostats

Mitsubishi Heavy Industries (MHI)

• X/Y or A1/B1 terminals
• Some models require A1/B1 shorting
• Works well if wiring rules are followed

Mitsubishi Electric

• CN105 interface
• 4-core connection with polarity
• Behavior varies by region and model

Mitsubishi Electric

• CN105 interface
• 4-core connection with polarity
• Behavior varies by region and model

Midea VRF (Most open and flexible)

• CN20, CN40, X1/X2
• Supports parallel control
• Clear communication structure
• Excellent compatibility with third-party thermostats

Midea systems are commonly used in hotel and office renovation projects due to their open interface design.

     5. A Practical Compatibility Checklist

If you’re unsure whether your VRF system supports a third-party thermostat, follow this process:

1. Identify the indoor unit model
2. Locate the communication terminal
3. Check cable requirements (2/3/4/5-core)
4. Confirm whether parallel control is allowed
5. Match the thermostat protocol
6. Test with a single indoor unit
7. Expand to the full system after validation

This workflow resolves most communication issues.

    6. Why Midea Is One of the Most Third-Party-Friendly VRF Brands

Midea’s open communication ports—especially CN20 and CN40—make it an ideal choice for smart building upgrades.
Many hotels and commercial buildings upgrade their systems by adding a smart thermostat while keeping the original wired controller. Midea handles this without communication conflicts, making it popular among system integrators.

    7. Frequently Asked Questions (FAQ)

Q1: Can I use a universal thermostat on a VRF system?
No. VRF units require digital communication thermostats.

Q2: Do Daikin VRV systems support external thermostats?
Yes, most models do.

Q3: Why is Gree compatibility sometimes challenging?
Their port types and wiring rules vary widely.

Q4: Are Midea VRF systems the easiest to integrate?
In many projects, yes.

Q5: Is the “WiFi port” on duct units truly wireless?
No. It is a digital communication terminal, not a wireless receiver.

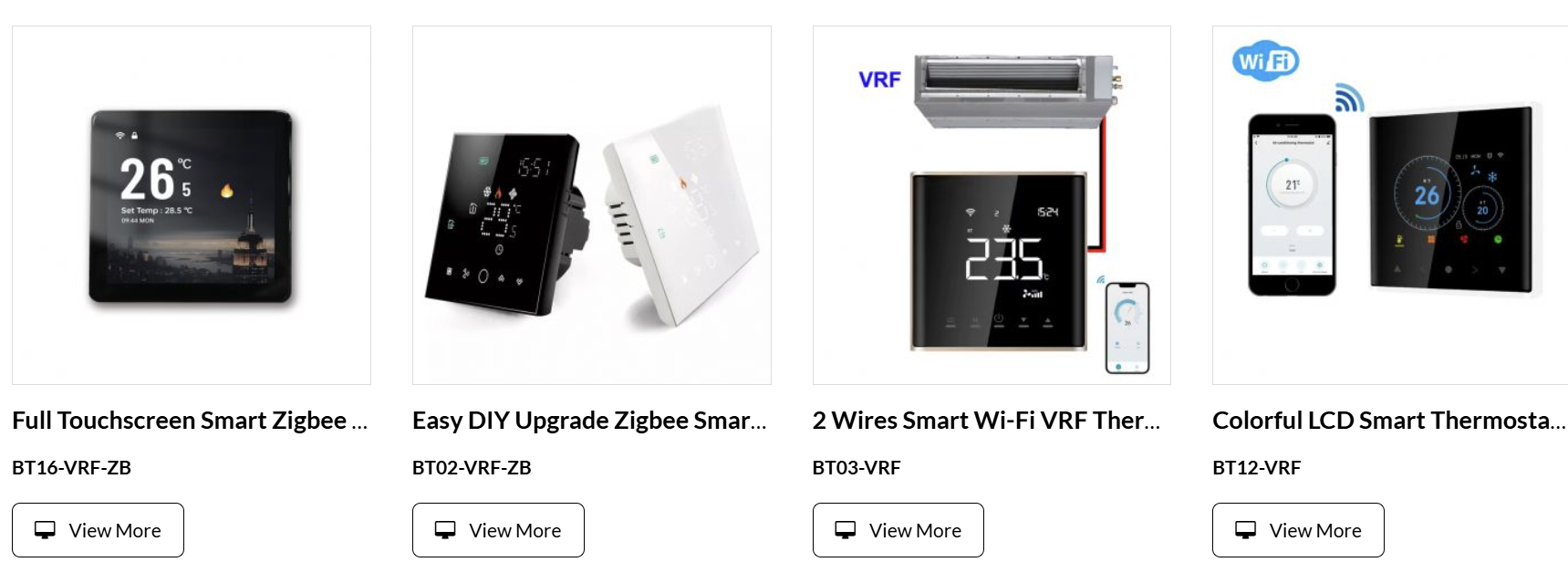

     8. VRF Thermostat Options from Beris Tech (Engineered for Multi-Brand Compatibility)

After understanding the compatibility principles, many installers ask the next practical question:

“Which thermostats have been successfully tested across major VRF brands?”

Based on years of project experience, Beris Tech offers four proven VRF thermostat models, widely used with:

Daikin, Midea, Gree, Haier, Hisense, York, Hitachi, Kelon, Mitsubishi Heavy, Mitsubishi Electric, and more.

You can view all models here:

1) Full Color Touchscreen VRF Thermostat (Premium Projects)

Ideal for: Hotels, office buildings, high-end residences
Features:

• Modern capacitive touch glass panel
• Fast, stable digital communication
• Supports P1/P2, X1/X2, CN ports
• Verified compatibility with Daikin, Midea, Haier, York

2) Engineering-Grade VRF Thermostat (Stability-Focused)

Ideal for: Hospitals, schools, retrofits
Features:

• High-stability hardware design
• Simple, intuitive button interface
• Reliable performance with Hitachi, Gree, Hisense, York, and others

3) Smart VRF Thermostat (WiFi / Zigbee Connectivity)

Ideal for: Smart hotels, BMS systems, building automation
Features:

• WiFi / Zigbee options
• App control via compatible gateway
• Matches P1P2 / CN22 / X1X2
• Perfect for smart upgrades without replacing the VRF system

4) Multi-Protocol “Universal” VRF Thermostat (For Mixed-Brand Projects)

Ideal for: Integrators, distributors, complex installations
Features:

• Supports multiple communication types in a single model
• Reduces stock pressure for distributors
• Suitable for projects involving multiple VRF brands

If you’re unsure whether your indoor unit can work with any of these thermostats, simply send us:

• A photo of the indoor unit terminal
• The exact model number
• Basic details about your project

Our technical team will check compatibility for you at no cost.

    ☑ Conclusion

VRF thermostat compatibility may look complicated, but with the right approach—checking the communication port, cable requirements, protocol, and parallel-control rules—you can accurately determine whether a third-party thermostat will work on your system.

If you need a reliable, field-tested solution, Beris Tech offers four VRF thermostat options capable of supporting a wide range of brands and project types.

Feel free to reach out with your indoor unit details, and we’ll help you confirm compatibility.
