How to Choose the Right FCU Thermostat for Your HVAC System?

In HVAC projects, FCU thermostats are often treated as simple room devices.

However, during commissioning, thermostat selection frequently becomes a key factor affecting system stability, communication with BMS, and on-site adjustment time.

This guide is written from an engineering perspective to help system integrators and consultants select FCU thermostats that match actual project requirements.

    FCU System Overview (Integrator View)

In FCU-based HVAC systems, the thermostat is responsible not only for room temperature control, but also for coordinating valve logic, fan operation, and communication with higher-level systems.

In many projects, thermostat-related issues are first discovered during system commissioning rather than during design review.

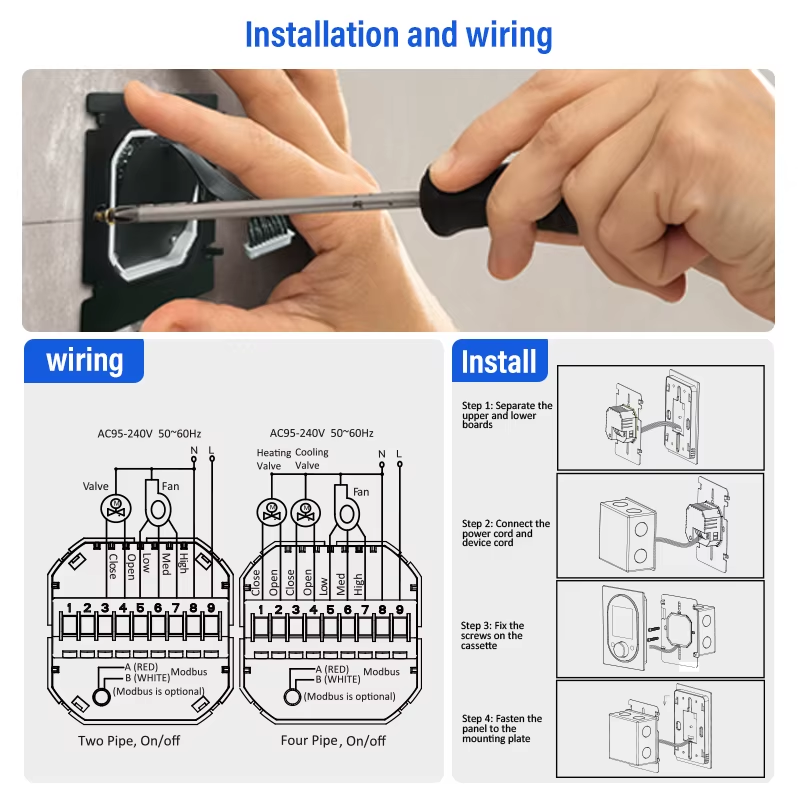

      2-Pipe vs 4-Pipe Systems (Project Reality)

From a project perspective:

•   ● 2-pipe systems are common in cost-sensitive residential and light commercial projects, where seasonal changeover is acceptable.
•   ● 4-pipe systems are widely used in hotels and offices to avoid comfort complaints caused by seasonal limitations.

A mismatch between piping configuration and thermostat output logic often leads to wiring rework during commissioning.

    Fan Control Considerations

For system integrators, fan control is not only about speed selection, but also about:

•   ● Relay current limits
•   ● Coordination with valve control
•   ● Startup behavior during mode switching

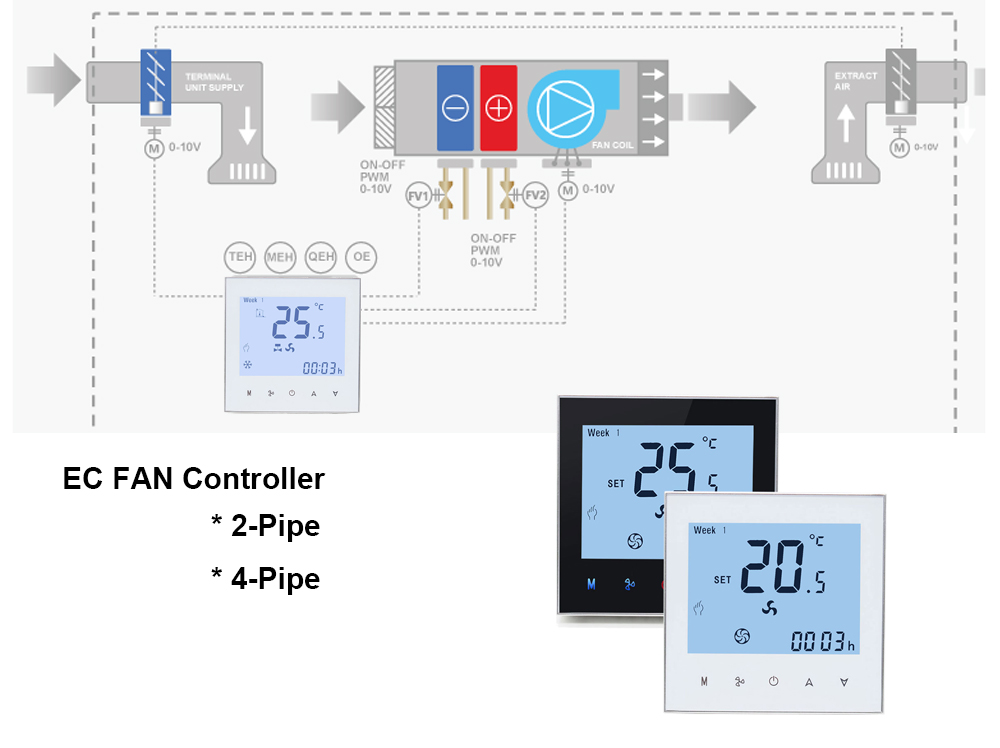

EC fan applications require thermostats with stable analog output and proper parameter configuration.

    BMS Integration and Communication

In BMS projects, FCU thermostats typically act as field devices communicating via Modbus RTU or BACnet.

A common issue observed on site is that the thermostat operates normally in standalone mode but fails to communicate with the BMS due to protocol mismatch, wiring topology errors, or parameter configuration issues.

    Engineering Selection Checklist

Before finalizing thermostat selection, system integrators should verify:

•   ● Piping configuration and valve logic
•   ● Fan control type and current rating
•   ● Power supply compatibility
•   Communication protocol and addressing
•   Required inputs for project integration

Clear confirmation at this stage significantly reduces commissioning time.

    Conclusion

From an engineering standpoint, selecting the right FCU thermostat is not a cosmetic decision.

It directly affects system integration, commissioning efficiency, and long-term operational stability.
