FCU Thermostat Not Working? 10 Common Causes and Solutions

>> Introduction

An FCU thermostat is the control center of a fan coil unit (FCU) system. It regulates room temperature by controlling the fan speed, water valve, and, in some cases, communicating with a Building Management System (BMS).

When an FCU thermostat stops working, it can lead to uncomfortable room temperatures, poor energy efficiency, or even complete loss of heating and cooling. In hotels, office buildings, hospitals, and commercial properties, thermostat issues can quickly become service calls that affect occupant comfort and building operations.

Fortunately, not every thermostat problem requires immediate replacement. Many issues can be identified through a systematic troubleshooting process.

In this guide, we'll explain the 10 most common causes of FCU thermostat problems, how to diagnose them, and when replacing the thermostat may be the best long-term solution.

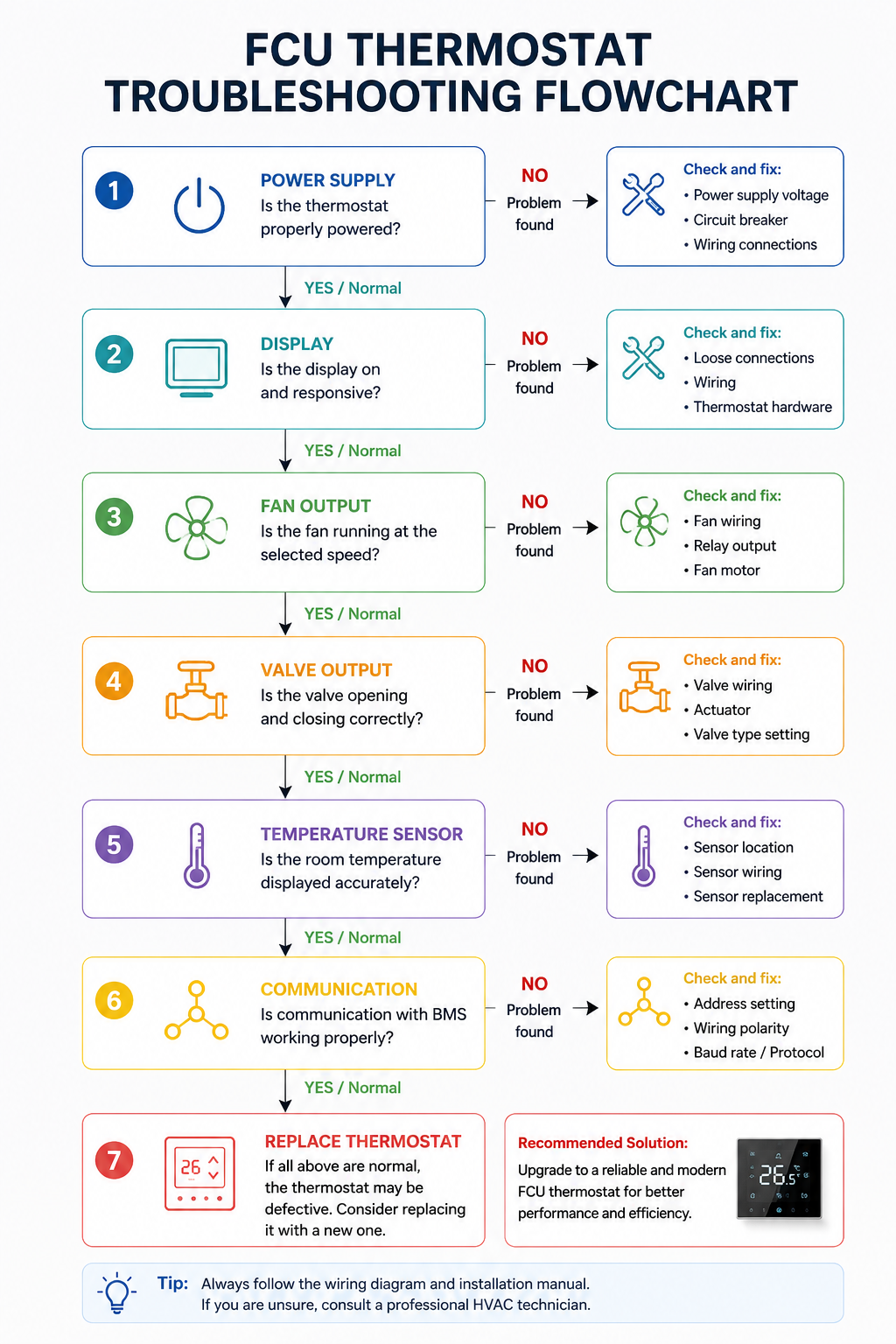

>> Quick Troubleshooting Checklist

Before replacing the thermostat, check the following:

•   ✔  Is the thermostat powered on?
•   ✔ Is the circuit breaker switched on?
•   ✔ Does the display respond normally?
•   ✔ Is the fan operating?
•   ✔ Is the valve opening correctly?
•   ✔ Are all wiring connections secure?
•   ✔ Has the correct operating mode been selected?
•   ✔ Is the room temperature sensor working properly?

If everything above appears normal but the thermostat still does not control the FCU correctly, continue with the troubleshooting guide below.

>> Common Symptoms of an FCU Thermostat Failure

Different symptoms often point to different causes.

Some of the most common include:

•   ● Thermostat display is blank
•   ● Fan does not start
•   ● Cooling is not working
•   ● Heating is not working
•   ● Temperature is inaccurate
•   ● Fan keeps running continuously
•   ● Valve never opens or closes
•   ● Buttons or touch screen do not respond
•   ● BACnet or Modbus communication failure
•   ● Thermostat powers on but does not control the FCU

Understanding the symptom is the first step toward identifying the actual problem.

1. No Power Supply

A blank display is often caused by a loss of power rather than a defective thermostat.

Check:

•   ● Power supply voltage
•   ● Circuit breaker
•   ● Loose wiring
•   ● Terminal connections

Using a multimeter to verify the input voltage is usually the quickest diagnostic method.

2. Incorrect Wiring

Incorrect wiring is one of the most common installation mistakes, especially during retrofit projects.

Typical issues include:

•   ● Fan wires connected to the wrong terminals
•   ● Valve output wired incorrectly
•   ● Incorrect Neutral or Live connection
•   ● Communication wires reversed

▶【Learn More – Common FCU Thermostat Wiring Mistakes】

3. Wrong System Configuration

Many thermostats support both 2-pipe and 4-pipe fan coil systems.

If the thermostat configuration does not match the actual FCU system, heating and cooling may not operate correctly.

Always verify:

•   ● 2-pipe or 4-pipe configuration
•   ● Fan type
•   ● Valve type

▶【Learn More – 2 Pipe vs 4 Pipe FCU Thermostat】

4. Faulty Temperature Sensor

If the thermostat reads the room temperature incorrectly, it may switch the FCU on or off at the wrong time.

Possible causes include:

•   ● Internal sensor failure
•   ● External sensor damage
•   ● Poor installation location
•   ● Direct sunlight
•   ● Airflow from supply vents

A thermostat installed too close to heat sources or cold air outlets may display inaccurate temperatures even when functioning normally.

5. Fan Motor Problems

Sometimes the thermostat is working correctly, but the fan motor is not.

Typical causes include:

•   ● Motor failure
•   ● Capacitor failure
•   ● Loose fan wiring
•    ●Fan relay damage

Before replacing the thermostat, verify that the fan motor can operate independently.

6. Valve Does Not Open or Close

The FCU thermostat controls the water valve rather than producing heating or cooling directly.

If the valve cannot open, conditioned water cannot flow through the coil.

Possible causes include:

•   ● Stuck valve
•   ● Damaged actuator
•   ● Incorrect valve type
•   ● Incorrect output configuration

Always verify whether the system uses:

•   ● On/Off valves
•   ● 0–10V modulating valves

7. Incorrect Operating Mode

Many service calls result from simple configuration errors.

Examples include:

•   ● Cooling mode selected during winter
•   ● Heating mode selected during summer
•   ● Fan set to Manual instead of Auto
•    ●Incorrect deadband settings

Checking the operating mode often resolves the issue within minutes.

8. Communication Failure with the Building Management System

In buildings using BACnet MS/TP or Modbus RTU, communication problems may prevent the thermostat from receiving commands.

Possible causes include:

• Incorrect device address
• Communication wiring issues
• Baud rate mismatch
• Network termination problems

▶【Learn More – BACnet vs Modbus Thermostat】

9. Thermostat Hardware Failure

Electronic components naturally age over time.

Older thermostats may develop:

•   ● Display failure
•   ● Touch panel failure
•   ● Relay failure
•   ● Communication board failure

If the thermostat has been in service for many years, replacing it may be more economical than repairing it.

10. The Thermostat Is Simply Outdated

Even if an older thermostat is still functioning, it may no longer meet modern building requirements.

Many commercial buildings are upgrading to thermostats that provide:

•   ● BACnet communication
•   ● Modbus communication
•   ● Touch-screen interface
•   ● WiFi connectivity
•   ● Improved energy management

For renovation projects, replacing an aging thermostat often improves both occupant comfort and building efficiency.

>> When Should You Replace an FCU Thermostat?

Replacing the thermostat is often the best option when:

•   ● The thermostat has failed repeatedly
•   ● Spare parts are no longer available
•   ● Building automation integration is required
•   ● Energy-saving upgrades are planned
•   ● Hotel or office renovation projects are underway

Rather than repairing outdated controls, many building owners choose to install modern thermostats that support future HVAC upgrades.

>> A Modern Replacement Solution

For commercial retrofit projects, the Beris Tech BT02-FCU thermostat is designed to replace traditional FCU thermostats while supporting modern HVAC requirements.

Key features include:

•   ● 2-pipe & 4-pipe FCU support
•   ● 3-speed fan control
•   ● On/Off valve control
•   ● Optional 0–10V valve control
•   ● BACnet MS/TP versions
•   ● Modbus RTU versions
•   ● Modern touch-screen interface
•   ● Hotel and office applications

Compared with many legacy thermostats, the BT02-FCU offers greater flexibility for renovation projects and future building automation upgrades.

▶【Learn More – BT14-FCU Product Page】

▶【Learn More – FCU Thermostat Category Page】

>> Related Articles

You may also find these guides helpful:

▶【Learn More – Honeywell T6861 Replacement Guide】

▶【Learn More – How to Choose an FCU Thermostat】

▶【Learn More – Top 10 FCU Thermostats】

>> Why Choose Beris Tech?

Beris Tech specializes in commercial HVAC control solutions for hotels, office buildings, hospitals, apartments, and other commercial projects.

Our product range includes:

•   ● FCU thermostats
•   ● Heat pump thermostats
•   ● Wireless room thermostats
•   ● Thermostatic radiator valves (TRVs)
•   ● Underfloor heating controls
•   ● Building automation solutions

Our engineering team works closely with HVAC distributors, OEM brands, contractors, and system integrators worldwide to help identify compatible thermostat solutions for both new construction and retrofit projects.

▶【Learn More – About Us】

>> Frequently Asked Questions

 ● Why is my FCU thermostat on but not cooling?

Possible causes include incorrect operating mode, valve problems, incorrect system configuration, or a faulty temperature sensor.

● Why is my thermostat screen blank?

A blank display is usually caused by power supply problems, loose wiring, or internal hardware failure.

● Can a faulty thermostat stop the FCU fan?

Yes. If the thermostat cannot send the correct output signal, the fan may not start.

● How do I know whether I should repair or replace my thermostat?

If the thermostat is outdated, repeatedly fails, or cannot support your building's current control requirements, replacement is often the more cost-effective option.

● Can I replace my old Honeywell thermostat with a modern FCU thermostat?

In many cases, yes. However, compatibility depends on the existing FCU system, valve type, fan control method, and communication requirements.

▶【Learn More – Honeywell T6861 Replacement Guide】

>> Recommended External References

For additional guidance on HVAC operation and maintenance, you may refer to:

ASHRAE – HVAC design, operation, and maintenance resources.

CIBSE – Best practices for building services engineering.

>> Need Help Troubleshooting Your FCU Thermostat?

If your FCU thermostat is not working and you're unsure whether the issue is caused by wiring, configuration, valve control, or hardware failure, our engineering team can help.

Simply provide:

•   ● Photos of the existing thermostat
•   ● Wiring diagram (if available)
•   ● 2-pipe or 4-pipe configuration
•   ● Fan type
•   ● Valve type

We'll recommend the most suitable solution for your project.

>> Conclusion

An FCU thermostat problem does not always mean the thermostat itself has failed. Power supply issues, wiring mistakes, incorrect configuration, valve problems, and communication faults are all common causes that should be checked before replacing the device.

However, if your thermostat is outdated or no longer meets the needs of modern commercial HVAC systems, upgrading to a newer solution can improve comfort, simplify maintenance, and prepare your building for future energy management and automation requirements.

By following a structured troubleshooting process, facility managers and HVAC professionals can quickly identify the root cause and determine whether repair or replacement is the best option.
